• Air conditioning, single-zone manual front climate control
• Assist handle, front passenger (Also includes rear assist handles in the headliner on Extended and Crew Cab Models.)
• Audio system feature, speaker system (Requires Extended or Crew Cab Models. Includes 6 speakers.)

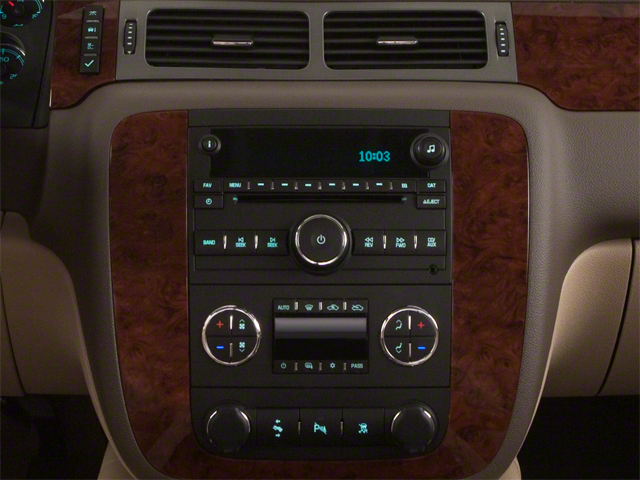

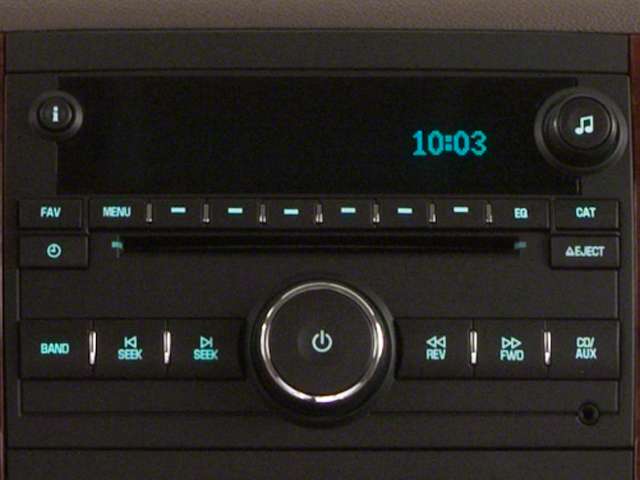

• Audio system, AM/FM stereo with seek-and-scan and digital clock (Not available with (U2K) XM Radio.)
• Coat hooks, rear driver and passenger side
• Cup holders, front (Also includes rear cupholders on Extended and Crew Cab models.)
• Floor covering, Black rubberized-vinyl
• Lighting, interior with dome and reading lights, illuminated entry feature and backlit instrument panel switches
• Mirror, inside rearview manual day/night
• Power outlets, 2 auxiliary instrument panel-mounted with covers, 12-volt

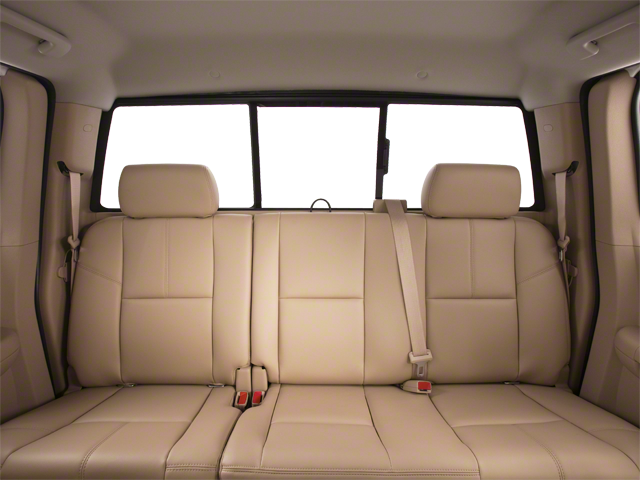

• Seat, rear bench (folds up), full width, folding, 3-passenger (includes child seat top tether anchor) (Standard with Extended Cab models only.)

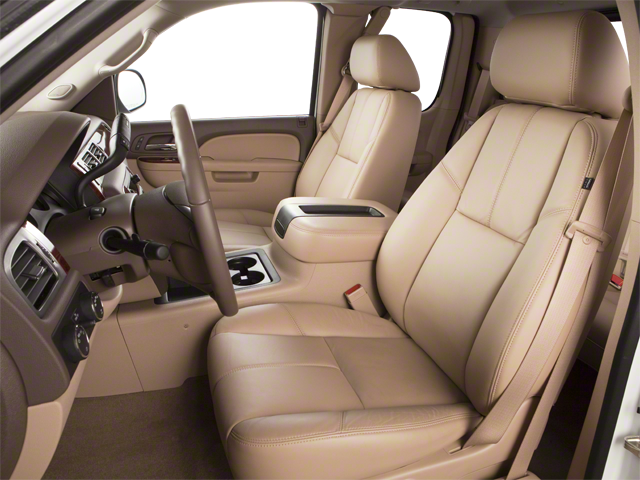

• Seats, front 40/20/40 split-bench, 3-passenger, driver and front passenger manual reclining with outboard head restraints and center fold-down armrest with storage

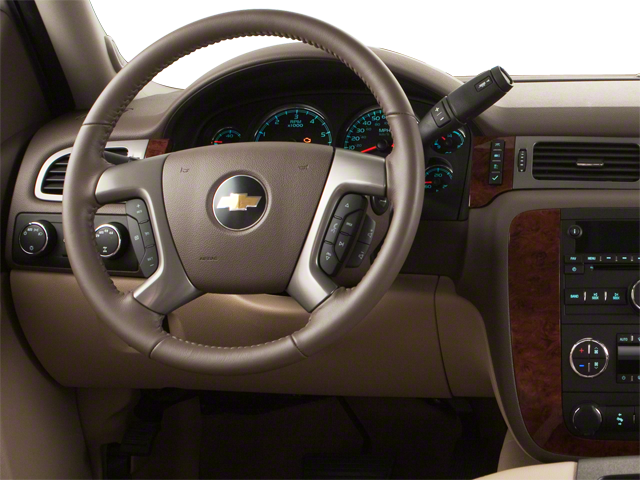

• Steering wheel, includes theft-deterrent locking feature
• Visors, driver and front passenger, sliding, with clip and passenger side vanity mirror with cover, Opal Gray-colored
• Warning tones headlamp on, key-in-ignition, driver and passenger buckle up reminder and turn signal on
• XM Radio, delete

• Alternator, 145 amps
• Battery, heavy-duty 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
• Brakes, 4-wheel antilock, front disc/rear drum
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Four wheel drive
• Frame, fully-boxed, hydroformed front section
• GVWR, 7000 lbs. (3175 kg) (Requires CK10753, CK10953 or CK10543 models.)
• Steering, power, rack-and-pinion
• Suspension Package, Solid Smooth Ride includes 35 mm piston twin tube shocks and 36mm front stabilizer bar
• Suspension, front independent, coil over shock
• Suspension, rear 2-stage multi-leaf springs, semi-elliptic
• Transfer case, with floor-mounted shifter (Requires 4WD models.)

• Air bags, frontal, driver and right-front passenger with Passenger Sensing System (Always use safety belts and the correct child restraints for your childs age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat. See the vehicles Owners Manual and child safety seat instructions for more safety information.)
• Air bags, head curtain side-impact, front outboard seating positions with rollover sensor (Head curtain side air bags are designed to help reduce the risk of head and neck injuries to front and rear seat occupants on the near side of certain side-impact collisions. Always use safety belts and the correct child restraints for your child's age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat. See the vehicle's Owner's Manual and child safety seat instructions for more safety information.)
• Air bags, seat-mounted side-impact, driver and right-front passenger for thorax and pelvic protection (Head curtain side air bags are designed to help reduce the risk of head and neck injuries to front and rear seat occupants on the near side of certain side-impact collisions. Always use safety belts and the correct child restraints for your child's age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat. See the vehicle's Owner's Manual and child safety seat instructions for more safety information.)
• Daytime Running Lamps, with automatic exterior lamp control
• OnStar, delete
• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control
• Tire Pressure Monitoring System (does not apply to spare tire)

WORK TRUCK PREFERRED EQUIPMENT GROUP

• includes standard equipment

SEATS, FRONT 40/20/40 SPLIT-BENCH, 3-PASSENGER, DRIVER AND FRONT PASSENGER MANUAL RECLINING

• with outboard head restraints and center fold-down armrest with storage (STD)

WHEELS, 4-17" X 7.5" (43.2 CM X 19.1 CM) STEEL, 6-LUG PAINTED

• includes painted center caps (spare wheel will not cosmetically match the other 4 wheels) (STD)

SUSPENSION PACKAGE, SOLID SMOOTH RIDE

• includes 35 mm piston twin tube shocks and 36mm front stabilizer bar (STD)

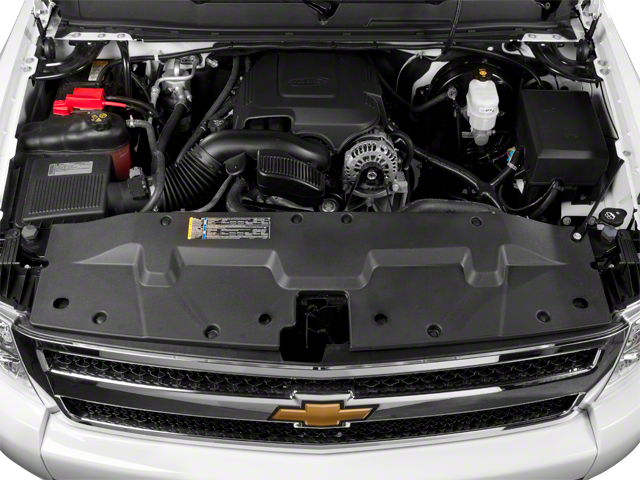

ENGINE, VORTEC 4.8L VARIABLE VALVE TIMING V8 SFI FLEXFUEL

• capable of running on unleaded or up to 85% ethanol (302 hp [225.2 kW] @ 5600 rpm
• 305 lb-ft torque [411.8 N-m] @ 4600 rpm)
• iron block (STD)

GLASS, SOLAR-RAY DEEP-TINTED

• (all windows except light-tinted glass on windshield and driver- and front passenger-side glass) (With Regular Cab models
• includes rear window. With Extended Cab models
• includes rear and rear quarter windows. With Crew Cab models or (C49) rear-window defogger
• includes light-tinted rear window.)

SPARE TIRE LOCK

• keyed cylinder lock that utilizes same key as ignition and door

TRANSMISSION, 4-SPEED AUTOMATIC, ELECTRONICALLY CONTROLLED

• with overdrive and tow/haul mode (STD)

TIRES, P265/70R17 ALL-SEASON, BLACKWALL

• includes a blackwall spare tire (STD)

LICENSE PLATE BRACKET, FRONT

• (will be forced on orders with ship-to states that require a front license plate)

AUDIO SYSTEM, AM/FM STEREO

• with seek-and-scan and digital clock (STD)

• WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment
• SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER DRIVER AND FRONT PASSENGER MANUAL RECLINING with outboard head restraints and center fold-down armrest with storage (STD)
• REAR AXLE 3.42 RATIO
• DARK TITANIUM CLOTH SEAT TRIM
• WHEELS 4-17" X 7.5" (43.2 CM X 19.1 CM) STEEL 6-LUG PAINTED includes painted center caps (spare wheel will not cosmetically match the other 4 wheels) (STD)
• SUSPENSION PACKAGE SOLID SMOOTH RIDE includes 35 mm piston twin tube shocks and 36mm front stabilizer bar (STD)
• ENGINE VORTEC 4.8L VARIABLE VALVE TIMING V8 SFI FLEXFUEL capable of running on unleaded or up to 85% ethanol (302 hp [225.2 kW] @ 5600 rpm 305 lb-ft torque [411.8 N-m] @ 4600 rpm) iron block (STD)
• GLASS SOLAR-RAY DEEP-TINTED (all windows except light-tinted glass on windshield and driver- and front passenger-side glass) (With Regular Cab models includes rear window. With Extended Cab models includes rear and rear quarter windows. With Crew Cab models or (C49) rear-window defogger includes light-tinted rear window.)
• SPARE TIRE LOCK keyed cylinder lock that utilizes same key as ignition and door
• IMPERIAL BLUE METALLIC
• TRANSMISSION 4-SPEED AUTOMATIC ELECTRONICALLY CONTROLLED with overdrive and tow/haul mode (STD)
• TIRES P265/70R17 ALL-SEASON BLACKWALL includes a blackwall spare tire (STD)
• LICENSE PLATE BRACKET FRONT (will be forced on orders with ship-to states that require a front license plate)
• AUDIO SYSTEM AM/FM STEREO with seek-and-scan and digital clock (STD)
• SEAT ADJUSTER MANUAL LUMBAR CONTROL ON THE DRIVER-SIDE
• PAINT SOLID
• Four Wheel Drive
• Power Steering
• ABS
• Front Disc/Rear Drum Brakes
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Conventional Spare Tire
• Automatic Headlights
• Intermittent Wipers
• AM/FM Stereo
• Split Bench Seat
• A/C
• Rear Bench Seat
• Power Outlet
• Passenger Vanity Mirror
• Front Reading Lamps
• Traction Control
• Stability Control
• Adjustable Steering Wheel
• Daytime Running Lights
• Automatic Headlights
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag Sensor
• Front Head Air Bag
• Front Side Air Bag
• Tire Pressure Monitor
• Work Truck Equipment Group
• 3.42 Rear Axle Ratio
• 17 inch x 7.5 inch 6-Lug Painted Steel Wheels
• Front 40/20/40 Split-Bench Seat
• Vinyl Seat Trim
• AM/FM Stereo w/Seek & Scan/Digital Clock
• Solar-Ray Deep-Tinted Glass
• Front License Plate Bracket
• Spare Tire Lock
• Solid Smooth Ride Suspension Package
• Driver-Side Manual Lumbar Control Seat Adjuster
• 6 Speaker Audio System Feature
• 6 Speakers
• AM/FM radio: XM

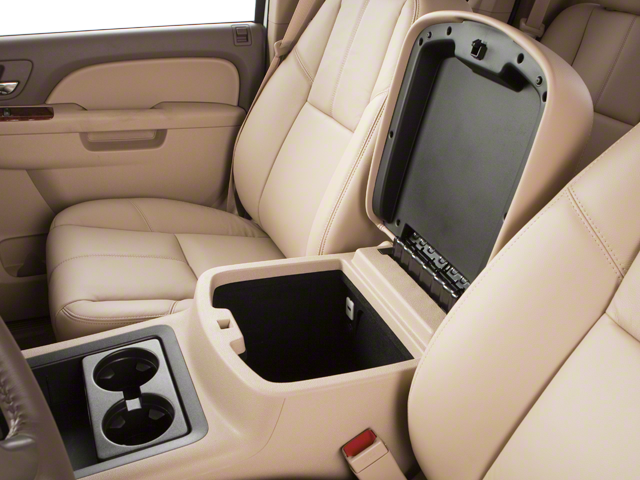

• Front Center Armrest w/Storage
• Front beverage holders
• Variably intermittent wipers
• Traction control
• Tilt steering wheel
• Rear step bumper
• Rear reading lights
• Power steering
• Passenger vanity mirror
• Passenger door bin
• Overhead console
• Overhead airbag
• Occupant sensing airbag
• Low tire pressure warning
• Fully automatic headlights
• Front wheel independent suspension
• Front reading lights
• Front anti-roll bar
• Dual front side impact airbags
• Dual front impact airbags
• Driver door bin
• Delay-off headlights
• ABS brakes
• Tachometer
• Electronic Stability Control
• Air Conditioning

• Brakes
• Brake ABS System: 4-Wheel
• Brake Type: Pwr
• Disc - Front (Yes or ): Yes
• Drum - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.99 x 1.18
• Rear Drum Diam x Width (in): 11.61 x 2.36
• Cargo Area Dimensions
• Cargo Box (Area) Height (in): 21.0
• Cargo Box Length : Floor (in)
• Cargo Box Width : Floor (in)
• Cargo Box Width : Top, Rear (in)
• Cargo Box Width : Wheelhousings (in)
• Cargo Volume (ft³): 60.7
• Tailgate Width (in): 61.6
• Cooling System
• Total Cooling System Capacity (qts): 13.4
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 145
• Emissions
• EPA Greenhouse Gas Score: 1
• Tons/yr of CO2 Emissions : 15K mi/year
• Exterior Dimensions
• Cab to Axle (in): 41.5
• Front Bumper to Back of Cab (in): 141.4
• Ground Clearance, Front (in): 9.0
• Ground Clearance, Rear (in): 11.8
• Ground to Top of Load Floor (in): 33.4
• Height, Overall (in): 73.7
• Length, Overall w/o rear bumper (in): 229.9
• Overhang, Front (in): 39.4
• Overhang, Rear w/o bumper (in): 47.2
• Wheelbase (in): 143.5
• Width, Max w/o mirrors (in): 79.9
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Fuel Tank Location: Driver Side
• Interior Dimensions
• Front Head Room (in): 41.2
• Front Hip Room (in): 62.5
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.2
• Passenger Capacity: 6
• Second Head Room (in): 39.2
• Second Hip Room (in): 61.9
• Second Leg Room (in): 34.3
• Second Shoulder Room (in): 65.3
• Mileage
• EPA Fuel Economy Est - City (MPG): 13
• EPA Fuel Economy Est - Hwy (MPG): 18
• Fuel Economy Est-Combined (MPG): 15
• Steering
• Steering Ratio (:1), At Lock: 3
• Steering Ratio (:1), On Center: 16.73
• Steering Type: Pwr
• Turning Diameter - Curb to Curb (ft): 46.9
• Summary
• Body Code: E63
• Body Style: Ext Cab 6.5' Wideside

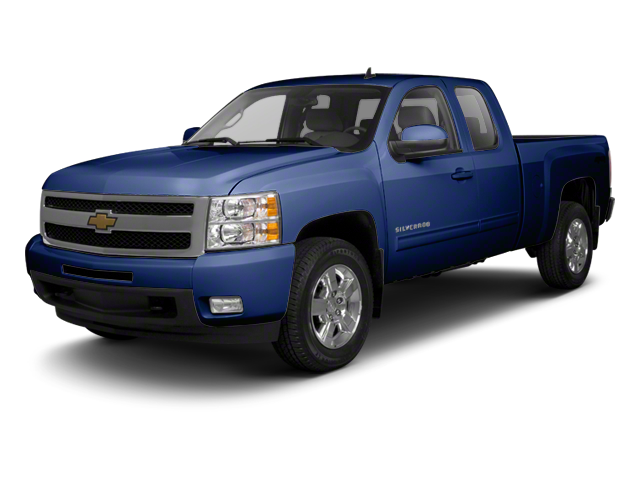

• Vehicle Name: Chevrolet Silverado 1500
• Suspension
• Axle Capacity - Front (lbs): 3950
• Axle Capacity - Rear (lbs): 3950
• Axle Ratio (:1) - Front: 3.42
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Spring Capacity - Front (lbs): 3950
• Spring Capacity - Rear (lbs): 3950
• Stabilizer Bar Diameter - Front (in): 1.42
• Suspension Type - Front: Independent
• Suspension Type - Rear: 2-stage multi-leaf
• Tires
• Front Tire Capacity (lbs): 2304
• Front Tire Order Code: QVL
• Front Tire Size: P265/70R17
• Rear Tire Capacity (lbs): 2304
• Rear Tire Order Code: QVL
• Rear Tire Size: P265/70R17
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Spare Tire Order Code: QVL
• Spare Tire Size: P265/70R17
• Trailering
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 1375
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 5500
• Maximum Trailering Capacity (lbs): 10400
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 825
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 5500
• Weight Information
• Curb Weight - Front (lbs): 3181
• Curb Weight - Rear (lbs): 2105
• Gross Axle Wt Rating - Front (lbs): 3950
• Gross Axle Wt Rating - Rear (lbs): 3950
• Gross Combined Wt Rating (lbs): 11000
• Gross Vehicle Weight Rating Cap (lbs): 7000
• Wheels
• Front Wheel Material: Steel
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Material: Steel
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Material: Steel
• Spare Wheel Size (in): 17 x
